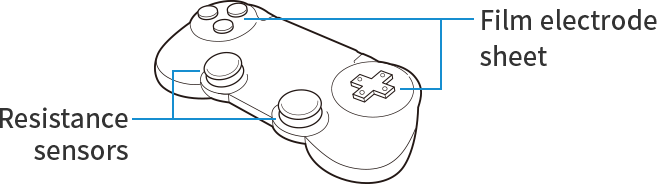

Operation for game console controller

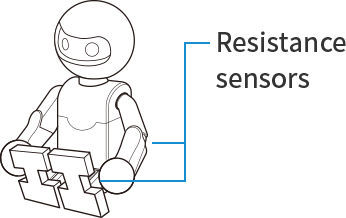

Joint for toy robot
| Category | Example | Features | Specifications / Shape | |
|---|---|---|---|---|
|
Flexible printed circuit |
Game console controller |
Creating circuits by printing tracks and resistors directly onto PET film enables us to manufacture controllers that are thin and lightweight. |
Customized products |
|
Flexible printed circuit |
Head mounted display |
Printing circuits on PET film enables a thin and lightweight circuit board. This will not negatively affect design and functionality, either. |
Customized products |
There is no product that corresponds to the specified application.
| Model | Specifications / 3D | Features | Size | Mounting style | Shaft | Endurance | Linearity | |
|---|---|---|---|---|---|---|---|---|
|
ZRS07PVD |
By using a molded resin substrate, a higher accuracy linearity and improved reflow resistance are achieved as compared to conventional products. |
7mm |
Vertical type |
Through type |
500,000 cycles |
±2.0% |
|
|
ZRS07PVC |
Sensor with high level of linearity and improved reflow resistance achieved with enhanced molded resin substrate. |
7mm |
Surface mount |
Through type |
500,000 cycles |
±2.0% |
|
|
ZRS09PVD |
By using a molded resin substrate, a higher accuracy linearity and improved reflow resistance are achieved as compared to conventional products. |
9mm |
Vertical type |
Mold type (Compatible with metal shaft) |
1,000,000 cycles |
±1.5% |
|
|
ZRS09PVC |
By using a molded resin substrate, a higher accuracy linearity and improved reflow resistance are achieved as compared to conventional products. |
9mm |
Surface mount |
Through type (FF) |
1,000,000 cycles |
±1.5% |
|
|
ZRS011 |
A sensor that achieves higher accuracy of linearity and improved reflow resistance by adopted a molded resin substrate. |
11mm |
Surface mount |
Through type |
10,000,000 cycles / 1,000,000 cycles |
±2.0% |
|
|
XV04 |
Long-life variable resistor designed for game machines. Light torque specification with excellent operability. |
4mm |
Vertical type |
Through type |
300,000 cycles |
- |
|
|
XV0711 |
A controlling element of game machines, etc., a position sensor for joints such as a personal robot. |
7mm |
Vertical type |
Through type |
500,000 cycles |
- |
|
|
XV09411 |
Long-life variable resistor designed for game machines. Light torque specification with excellent operability. Various metal shafts are available. |
9mm |
Vertical type |
10FF |
1,000,000 cycles |
- |
|
|
XV09912 |
Long-life variable resistor designed for game machines. Light torque specification with excellent operability. |
9mm |
Horizontal type |
Through type |
5,000,000 cycles |
- |
|
|
XV09914 |
Long-life variable resistor designed for game machines. Light torque specification with excellent operability. |
9mm |
Horizontal type |
Through type |
5,000,000 cycles |
- |
|
|
TR133 |
By using proprietary technology for resistance terminals, contact method for sliding parts, bearings, etc., a longer lifetime is made possible. |
13mm |
Vertical type |
Metal shaft |
500,000 cycles |
±1.5% |
There is no product that corresponds to the specified application.
| Model | Specifications / 3D | Features | Movement amount | Operation direction | Length of lever / type | Endurance | Linearity | |
|---|---|---|---|---|---|---|---|---|
|
XVJ09 |
Long-life variable resistor designed for game machines. Light torque specification with excellent operability. |
9mm |
Vertical type |
4R |
3,000,000 cycles |
- |
|
|
LSJ12 |
For a wide variety of VR applications. Slide sensor with a light and smooth sliding feel. |
12mm |
Vertical type |
- |
100,000 cycles |
±1.0% |
|
|
XLS3201 |
Slim type slide potentiometer. Fast responsiveness with a light sliding feeling. Compared with optical types, the influence of external noise is small. |
32mm |
Vertical type |
- |
30,000 cycles |
±1.0%, ±0.5% |
|
|
XLS012001 |
Thin and lightweight achieved by integral molding of FPC and resin. FPC lead-out shape can be changed by customization. |
120mm |
Vertical type |
- |
100,000 cycles |
±1.0% |
There is no product that corresponds to the specified application.
| Model | Specifications / 3D | Features | Size | Adjustment method | Stopper | Total resistance | |
|---|---|---|---|---|---|---|---|
|
TMC2K2J |
Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support. |
2mm |
Automatic |
Without |
100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ |
|
|
TMC3K |
Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support. |
3mm |
Manually operated |
Without |
100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ |
|
|
TMC3KJ |
Compact / Thin. Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Reflow support. |
3mm |
Automatic |
Without |
100Ω, 220Ω, 470Ω, 1kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ, 2.2MΩ |
There is no product that corresponds to the specified application.
