Biological sensor
Capacitance measurement
| Category | Example | Features | Specifications / Shape | |
|---|---|---|---|---|
|
Molded parts |
Blood glucose meter |
We use decorative technologies such as resin molding and pad printing, as well as assembly technology, to piece the product together and deliver it semi-complete; resulting in less work for our clients. This also helps maintain product quality. |
Customized products |
|

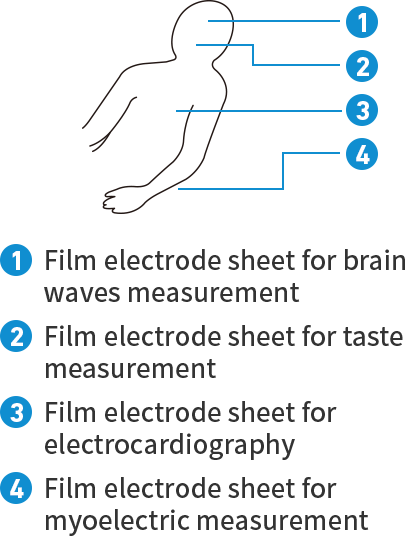

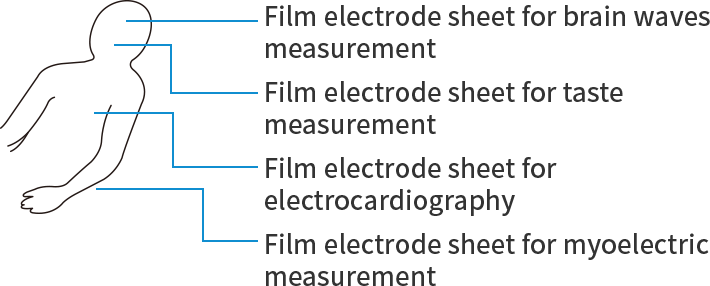

Biological sensor |
Disposable electrodes |
We produce biological sensors by printing on PET film; bringing together a wide variety of printing technologies including multilayer printing, double sided printing, through-hole printing, and foam printing. We are also equipped to meet additional customer requirements such as noise prevention and tactual sense. |
Customized products |
There is no product that corresponds to the specified application.
| Model | Specifications / 3D | Features | Size | Mounting style | Shaft | Endurance | Linearity | |
|---|---|---|---|---|---|---|---|---|
|
ZRS09PVD |
By using a molded resin substrate, a higher accuracy linearity and improved reflow resistance are achieved as compared to conventional products. |
9mm |
Vertical type |
Mold type (Compatible with metal shaft) |
1,000,000 cycles |
±1.5% |
|
|
ZRS09PVC |
By using a molded resin substrate, a higher accuracy linearity and improved reflow resistance are achieved as compared to conventional products. |
9mm |
Surface mount |
Through type (FF) |
1,000,000 cycles |
±1.5% |
There is no product that corresponds to the specified application.
| Model | Specifications / 3D | Features | Movement amount | Operation direction | Length of lever / type | Endurance | Linearity | |
|---|---|---|---|---|---|---|---|---|
|
XLS3201 |
Slim type slide potentiometer. Fast responsiveness with a light sliding feeling. Compared with optical types, the influence of external noise is small. |
32mm |
Vertical type |
- |
30,000 cycles |
±1.0%, ±0.5% |
|
|
XLS012001 |
Thin and lightweight achieved by integral molding of FPC and resin. FPC lead-out shape can be changed by customization. |
120mm |
Vertical type |
- |
100,000 cycles |
±1.0% |
There is no product that corresponds to the specified application.
| Model | Specifications / 3D | Features | Size | Number of resistance elements | Mounting height | Mounting style | Bushing / Sleeve | Length of lever / type | Center detent | Total resistance | Resistance taper | Endurance | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XV092 |
9mm size snap-in rotary potentiometer. Smooth rotation feeling due to the use of film. |
9mm |
Single unit |
6.5/10.0/12.5mm |
Horizontal type / Vertical type |
With / Without sleeve |
15F, 20F, 25F, 30F, 15U, 20U, 25U |
With / Without |
10kΩ, 20kΩ, 50kΩ, 100kΩ |
1B, 15A, 15C |
10,000 cycles |
There is no product that corresponds to the specified application.
| Model | Specifications / 3D | Features | Movement amount | Number of resistance elements | Mounting style | Length of lever / type | Center detent | Total resistance | Resistance taper | Endurance | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
XVJ09 |
Long-life variable resistor designed for game machines. Light torque specification with excellent operability. |
9mm |
Single unit |
Vertical type |
4R |
Without |
30kΩ |
0B |
3,000,000 cycles |
There is no product that corresponds to the specified application.
| Model | Specifications / 3D | Features | Size | Mounting method | Total resistance | |
|---|---|---|---|---|---|---|
|
VM5CK-PV |
Excellent stability and outstanding weather resistance due to use of metal glaze resistive element. Compact, high power type. |
5mm |
Vertical type |
100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ |
There is no product that corresponds to the specified application.
